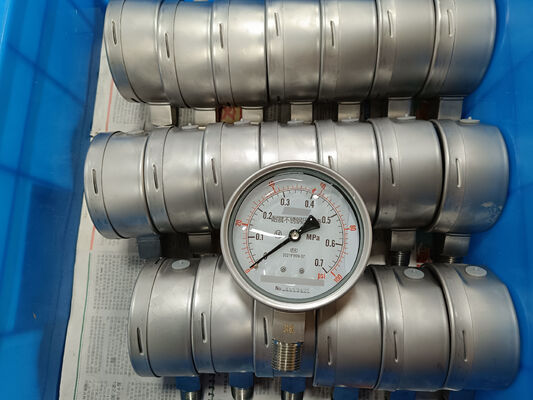

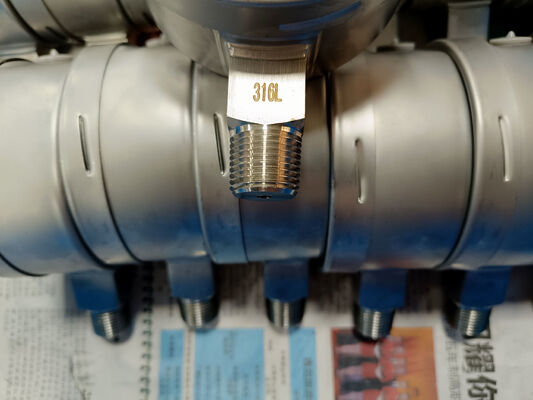

4 Inch 316 Stainless Steel Pressure Gauge with Bayonet Ring for Shock Proof Performance

Ürün Açıklaması

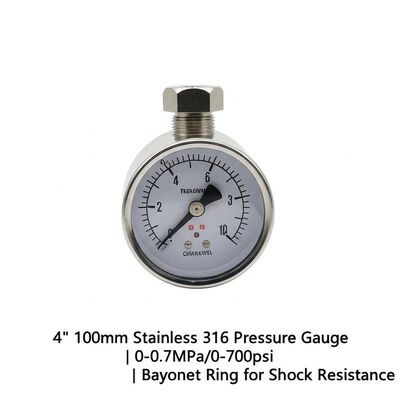

4" 100mm Stainless 316 Pressure Gauge | 0-0.7MPa/0-700psi | Bayonet Ring for Shock Resistance

Professional-Grade Stainless Steel Gauge

Our 4-inch (100mm) Stainless Steel Pressure Gauge is engineered for precision and durability in demanding industrial settings. Featuring a 0-0.7MPa / 0-700psi dual-scale dial, this instrument is constructed entirely from corrosion-resistant 316 stainless steel and incorporates a unique bayonet ring for enhanced security and shock-proof performance. Designed for reliability, this bayonet pressure gauge ensures stable readings and long service life in challenging environments.

Key Features & Benefits

Premium 316 Stainless Steel Construction: Offers exceptional resistance to corrosion, chemicals, and harsh weather conditions, making this stainless steel pressure gauge ideal for marine, chemical, and food processing applications.
Secure Bayonet Ring Design: The exclusive bayonet ring provides a locked, tamper-resistant front assembly. This feature makes it a true shock proof pressure gauge by preventing the window from loosening due to vibration or impact.
Clear Dual-Scale Readability: The large 4-inch dial displays both metric (0-0.7MPa) and imperial (0-700psi) units, providing flexibility and eliminating conversion errors for operators.
Enhanced Safety & Durability: The combination of solid front design and bayonet locking ring contains potential internal overpressure events and protects against environmental ingress (dust, moisture).
Versatile Mounting: Standard radial bottom connection for easy installation on panels, pipelines, or equipment skids.

Technical Specifications

Dial Size	4 inches / 100 mm
Pressure Range	0-0.7MPa / 0-700psi (Dual Scale)
Case Material	316 Stainless Steel (Full Construction)
Special Feature	Bayonet Ring (Locking Front Ring)
Connection Type	Radial (Bottom/Back)
Connection Thread	1/4" NPT or G1/2 (Standard)
Accuracy Class	±1.6% of Full Scale
Window	Tempered Safety Glass
Operating Temperature	-20°C to +80°C

Why the Bayonet Ring Makes a Superior Shock Proof Gauge

The bayonet pressure gauge design represents a significant advancement over standard screwed bezels:

Vibration-Proof Locking: The quarter-turn bayonet mechanism ensures the front ring cannot vibrate loose, a critical failure point in high-shock environments.
Quick Maintenance: Allows for faster and tool-free disassembly for cleaning or inspection compared to threaded bezels, while maintaining a secure seal.
Tamper Resistance: Provides an additional level of security against unauthorized adjustment or disassembly in regulated or public settings.
Reliable Seal: Maintains a consistent, even pressure on the gasket for superior sealing against moisture and dust ingress.

Typical Applications

This robust stainless steel pressure gauge is perfectly suited for:

Marine & Offshore Equipment
Chemical & Petrochemical Processing Plants
Food & Beverage Production Lines (Sanitary Applications)
Pharmaceutical and Water Treatment Facilities
Power Generation and Utility Systems
High-Vibration Machinery and Mobile Equipment

Ordering & Customization

As specialists in industrial instrumentation, we offer customization options including different pressure ranges, connection types, and dial markings to meet your exact specifications.

For technical data, pricing, or to discuss your specific requirements:

Contact our technical sales team for detailed specifications and custom solutions.
