Balloon Inflation Device Noctilucence Medical 30ATM Pressure Gauge 40mm

1000 adet
MOQ
Depends on total quantity
fiyat
Balloon Inflation Device Noctilucence Medical 30ATM Pressure Gauge 40mm
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Özelleştirilmiş destek: OEM, ODM, OBM
Malzeme: Plastik
Orijinal Yer: Çin yapımı
Arama Boyutu: 40mm
Basınç Aralığı: Gereksinimlere göre yapılır, Mpa, bar, psi, kg vb.
Montaj: Geri
Kalite: 1 Yıl
Ödeme: çeşitli ödeme yöntemleri
Deneyim Üretmek: 10 yıl
Garanti: 1Y
Liman: QingDao, Şangay
Avantajları: Neme dayanıklı, Aşınmaya dayanıklı, Çevre dostu, Yüksek dayanıklı
Temel bilgiler
Menşe yeri: Qingdao, Çin
Marka adı: WYYW
Sertifika: CE & ISO9001
Model numarası: Y-40Z
Ödeme & teslimat koşulları
Ambalaj bilgileri: İç plastik torba, ihracat kartonu dışarı doğru. Palet isteğe bağlı.
Teslim süresi: 5-30 gün
Ödeme koşulları: TT,LC.Alipay.Western Union
Yetenek temini: ayda 30-50 bin
Ürün Açıklaması

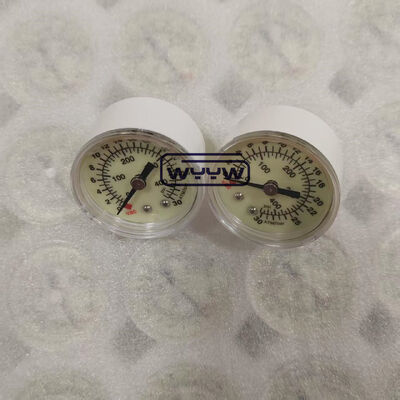

Balloon Inflation Device Noctilucence Medical 30ATM Pressure Gauge 40mm
Product Overview

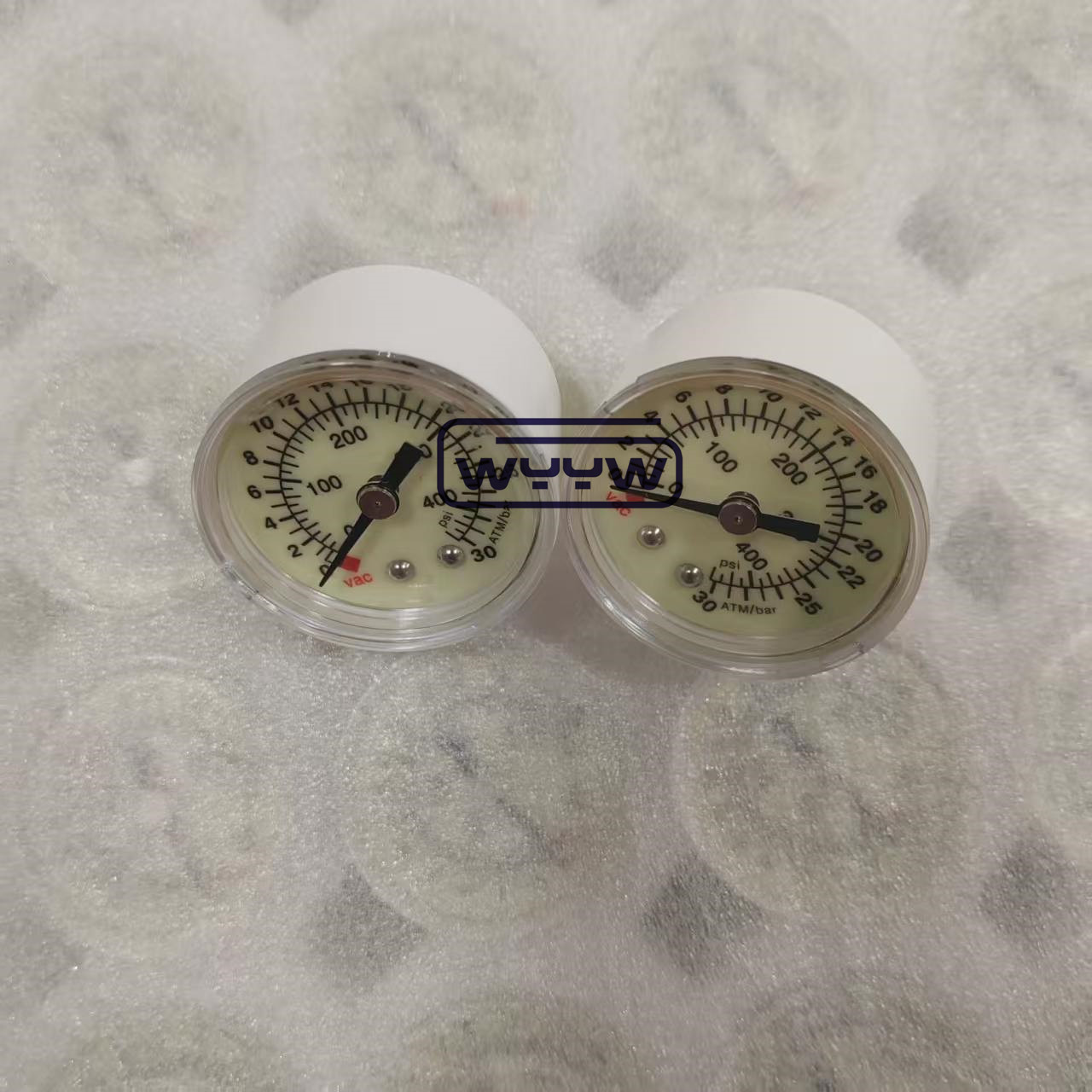

Balloon Inflation Device Noctilucence Medical 30ATM Pressure Gauge 40mm 0 Balloon Inflation Device Noctilucence Medical 30ATM Pressure Gauge 40mm 1
Name Balloon Inflation Device Noctilucence Medical 30ATM Pressure Gauge 40mm
Dials Size 40mm (or custom size available)
Case Plastic case
Pressure Mpa, other scale units bar, psi, kg/cm² etc. (optional)
Ring None
Movement Brass
Socket Brass
Bourdon tube Bronze
Dial plate and pointer Aluminum
Window Plastic
Connection sizes 1/8" for 1.5", 1/4 for 2", 2.5" case; 1/2 for 4", 6"
Connection threads Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
Mounting Bottom (Or panel, bottom mounting available)
Accuracy 1.5"(40mm), 2"(50mm), 2.5(63mm) - 2.5%
4"(100mm) and 6"(150mm) - 1.6%
Pressure limitation Steady: 3/4x full scale value
Fluctuation: 2/3x full scale value
Short time: full scale value

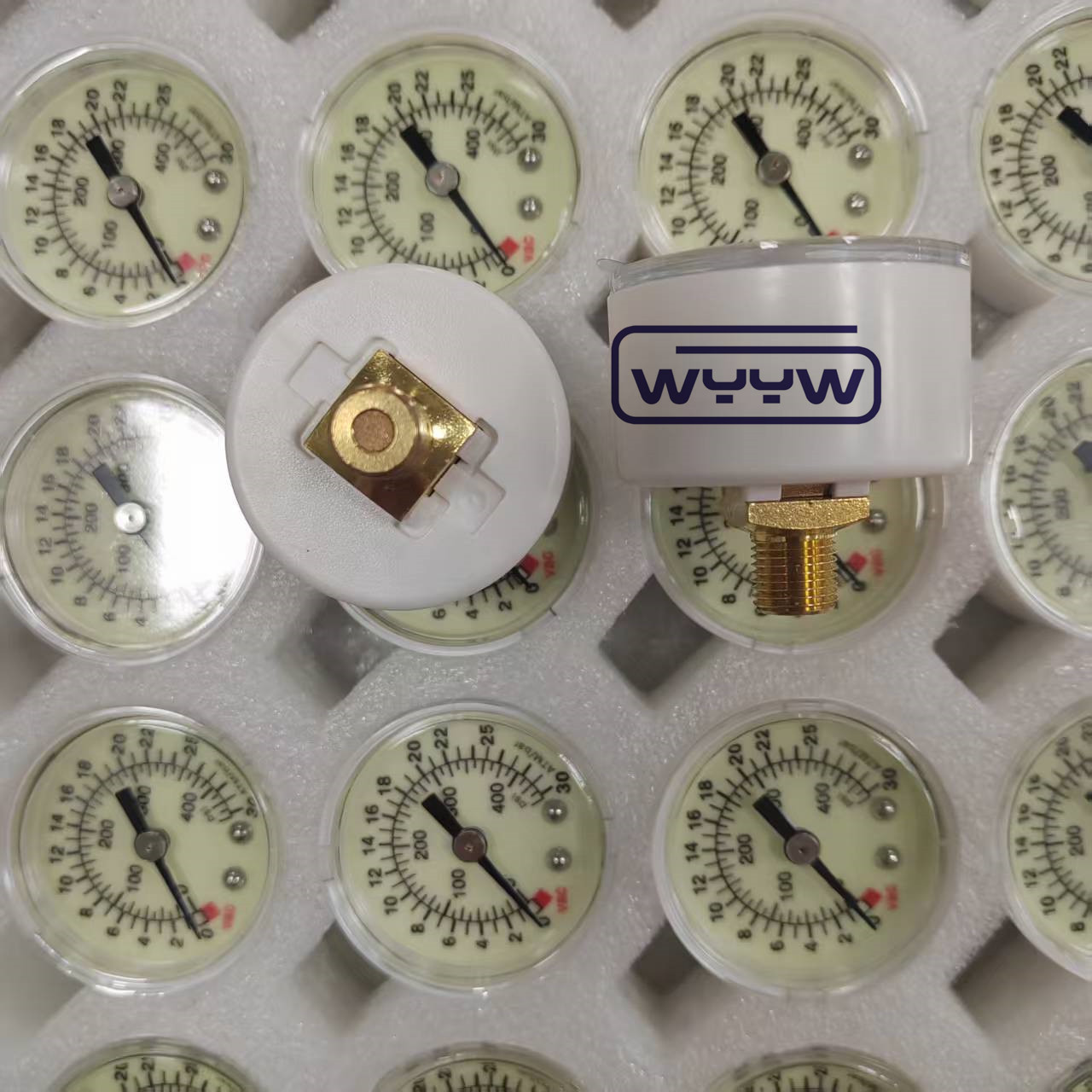

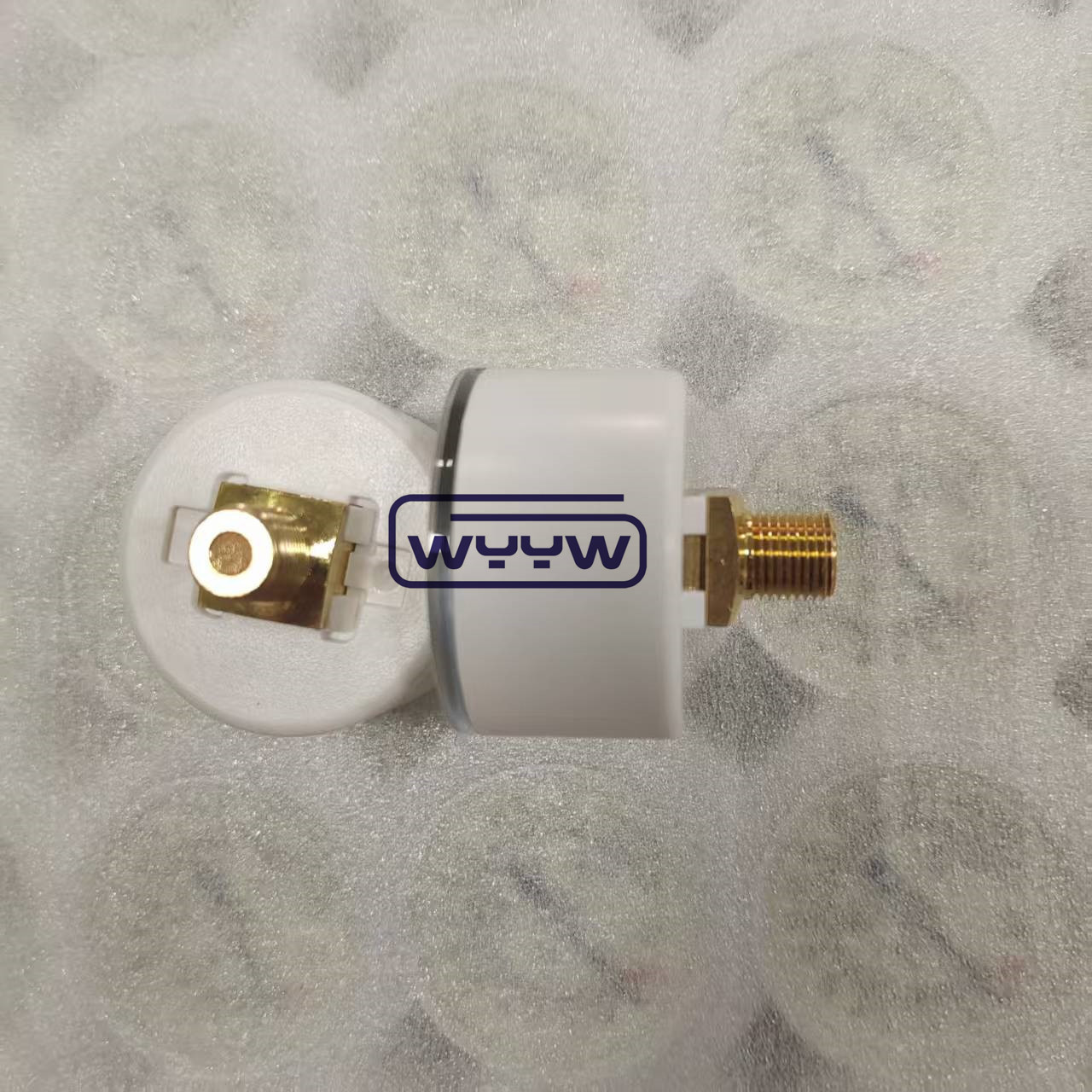

Balloon Inflation Device Noctilucence Medical 30ATM Pressure Gauge 40mm 2 Balloon Inflation Device Noctilucence Medical 30ATM Pressure Gauge 40mm 3 Balloon Inflation Device Noctilucence Medical 30ATM Pressure Gauge 40mm 4
Product Applications
  • Outdoor and severe ambient and process conditions
  • Use where harmful vibration and pulsation are present
  • Hydraulic equipment, pressure washers, oil field equipment, pumps, compressors and process systems
Balloon Inflation Device Noctilucence Medical 30ATM Pressure Gauge 40mm 5
Company Information

Qingdao DaZeFengYang is a professional pressure gauge and hardware tools manufacturer, and a member of China National Hardware Association.

Together with our highly skilled technical experts, we have put effort into meeting quality standards for pressure gauges as per GB/T (Chinese Standard) & International Standards requirements. We have obtained ISO9001 and CE certification for all our products, including pressure gauges, gas regulators, cutting torches and welding torches.

Over years of development, we now offer an impressive selection of products, both special and standard, with competitive prices and reliable deliveries. Our speedy sales and after-sales service make our company attractive to customers worldwide, especially distributors and importers from Europe, Southeast Asia, Middle East, America and Australia.

Welcome to contact us by phone, email, or visit our company. We sincerely hope to create a wonderful future together with you.

Balloon Inflation Device Noctilucence Medical 30ATM Pressure Gauge 40mm 6 Balloon Inflation Device Noctilucence Medical 30ATM Pressure Gauge 40mm 7 Balloon Inflation Device Noctilucence Medical 30ATM Pressure Gauge 40mm 8
Packaging & Shipping
Balloon Inflation Device Noctilucence Medical 30ATM Pressure Gauge 40mm 9
Our Advantages
  • Advanced Equipment and Professional Technology: Committed to offering high-quality gauges with advanced equipment and professional technology for customers worldwide.
  • Best After-sales Service: Providing excellent after-sale service with the goal of establishing long-term trade cooperation.
  • Serious Inspection Procedure with Excellent Quality: All pressure gauges undergo 100% inspection, and we have passed ISO9001 and UL certification.
  • Quick Delivery: Providing timely delivery to always satisfy customer needs.
  • Convenient Purchase and Cost Savings: As a skilled manufacturer, we offer convenient purchasing with high-quality products at reasonable prices.
  • OEM Orders: Extensive experience with OEM orders from well-known companies in USA and European markets.
