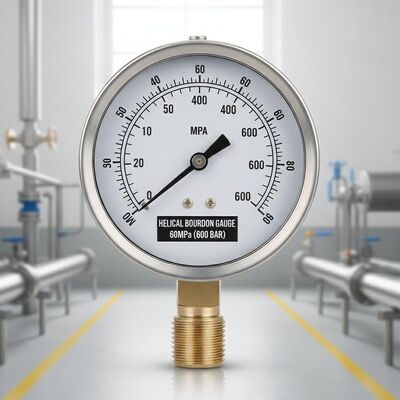

2.5 Inch 60MPa (600 Bar) Helical Bourdon Gauge for High Pressure Industrial Applications

Ürün Açıklaması

2.5" 60MPa (600 Bar) Helical Bourdon Gauge | High Pressure Radiator & Industrial Use

Product Overview: High-Pressure Reliability in a Compact Gauge

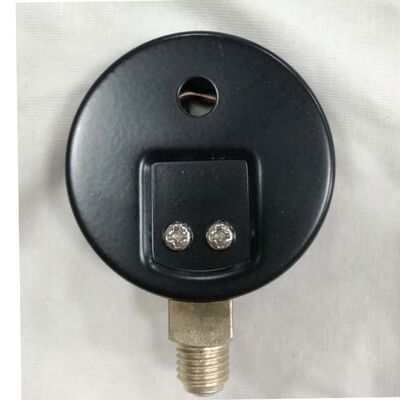

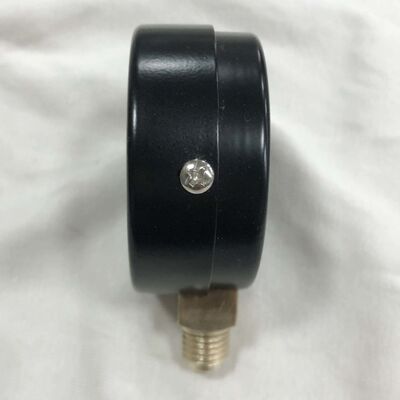

Our 2.5-inch (60mm) High-Pressure Radial Gauge is engineered to deliver unwavering performance in the most demanding applications. With an impressive range of 0-60MPa (equivalent to 600 bar), this mechanical gauge utilizes a robust helical Bourdon tube mechanism housed in a durable black steel case with a brass connection. It stands as a quintessential bourdon meter offering exceptional stability, durability, and affordability for monitoring extreme pressures in systems such as hydraulic test benches, compressors, and specialized equipment like radiator pressure gauge applications.

Key Features & Benefits

Extreme Pressure Capacity: Specifically designed as a pressure gauge 600 bar solution, reliably measuring up to 60MPa for high-pressure hydraulic systems, water jetting, and gas compression.
Helical Bourdon Tube Technology: Unlike standard C-tubes, the helical Bourdon type provides greater movement and durability under very high pressure, ensuring precise readings and long-term mechanical stability.
Robust Industrial Construction: The black steel case offers protection and durability, while the brass connection ensures a reliable, corrosion-resistant seal for the high-pressure medium.
Compact & Versatile: The 2.5-inch (60mm) radial pressure gauge design is ideal for panels and equipment where space is limited but performance cannot be compromised.
Mechanical Simplicity & Value: As a purely mechanical device, it requires no external power, offering a stable, maintenance-free, and affordable solution for continuous high-pressure monitoring.

Technical Specifications

Specification	Detail
Dial Size	2.5 inches / 60 mm
Pressure Range	0-60MPa / 0-600 bar
Case Material	Black Steel
Connection Material & Type	Brass, Radial (Bottom/Back)
Connection Thread	1/4" NPT or G1/4 (Standard)
Bourdon Tube Type	Helical (Coil) Type
Accuracy Class	±1.6% of Full Scale
Window	Polycarbonate or Safety Glass

Why the Helical Bourdon Design is Critical for 600 Bar

For a pressure gauge 600 bar, a standard C-shaped Bourdon tube can be overstressed. The helical bourdon type provides a superior solution with enhanced safety and longevity. The coiled shape distributes stress more evenly, allowing the tube to safely withstand extreme pressures and pressure cycling. This design produces greater pointer movement for the same pressure input, allowing for a clearer, more readable scale on a compact 2.5" dial. This proven reliability makes it the industry standard for dependable high-pressure measurement.

Typical Applications

This high-pressure gauge is essential for:

High-Pressure Hydraulic Systems (Pumps, Presses, Cylinders)
Industrial & Automotive Testing: Serving as a critical radiator pressure gauge for testing coolant system pressure caps and radiator durability.
Water Blasting & Cutting Equipment
Air & Gas Compressors
Process Control in oil & gas and manufacturing

Ordering & Technical Support

For extreme pressure applications, correct selection and installation are vital. Contact us for support with threading, calibration, or specific application needs. Our technical experts are available to provide advice on high-pressure gauges and radiator testing solutions.
